A modern X11 server for macOS, built in 30 days by a seasoned programmer and Agentic AI

X windows are first-class macOS windows

One NSWindow per X top-level. Real Mission Control behavior. Optional Motif-style window frame when you want it.

X windows are first-class macOS windows

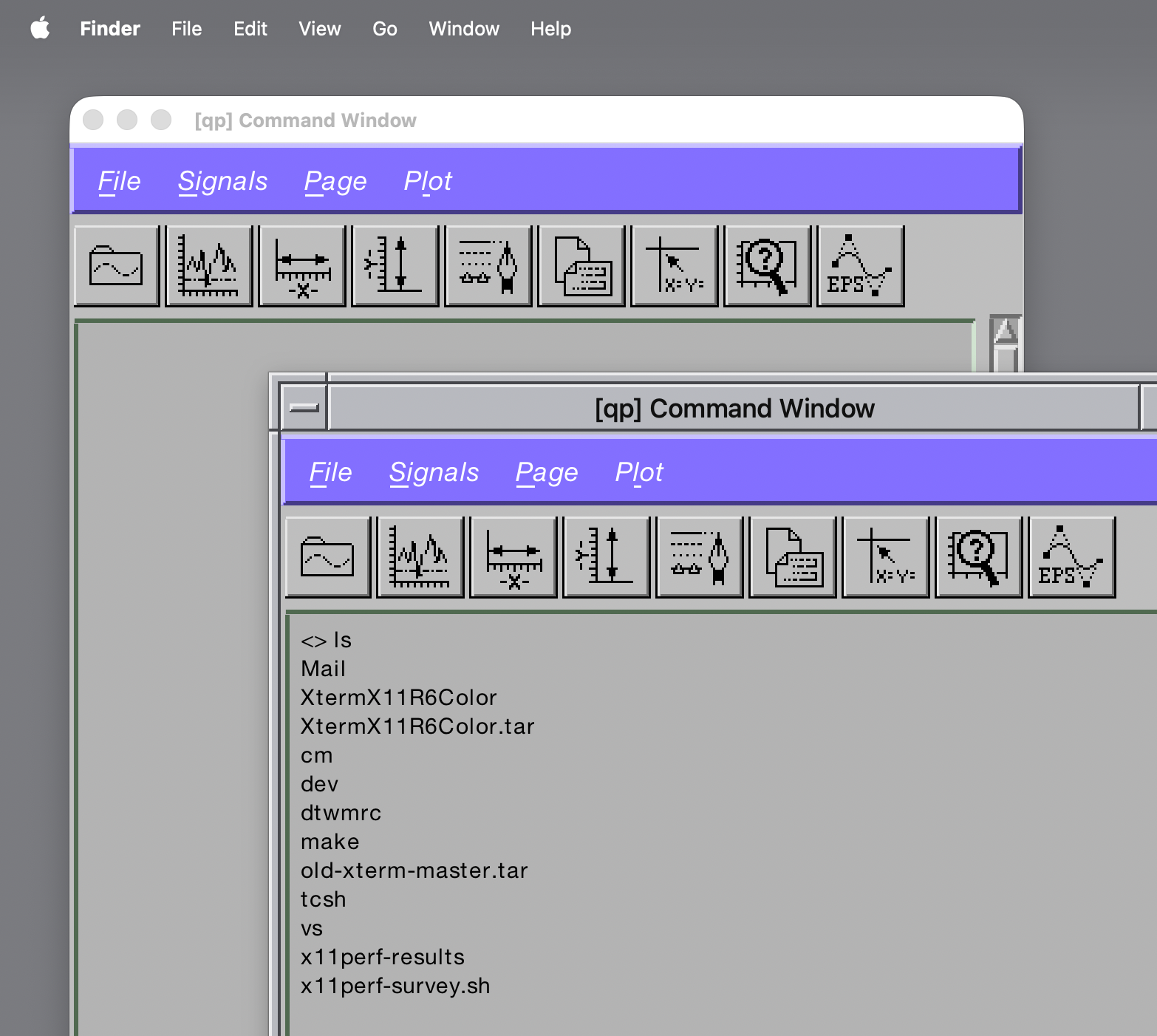

The same quickplot Command Window rendered two ways: with the optional Motif window frame on top, and with the standard macOS title bar below. You pick which one; macXserver does either.

What it does

Every X top-level window opens a real macOS NSWindow. It appears in Mission Control. It shows up in the Dock. You can Cmd-Tab to it. You can use Cmd-~ to cycle among the X-server’s windows. You can drag it across Spaces. It honors setFrameAutosaveName for position persistence. It is, structurally, a first-class macOS window that happens to be displaying an X11 client.

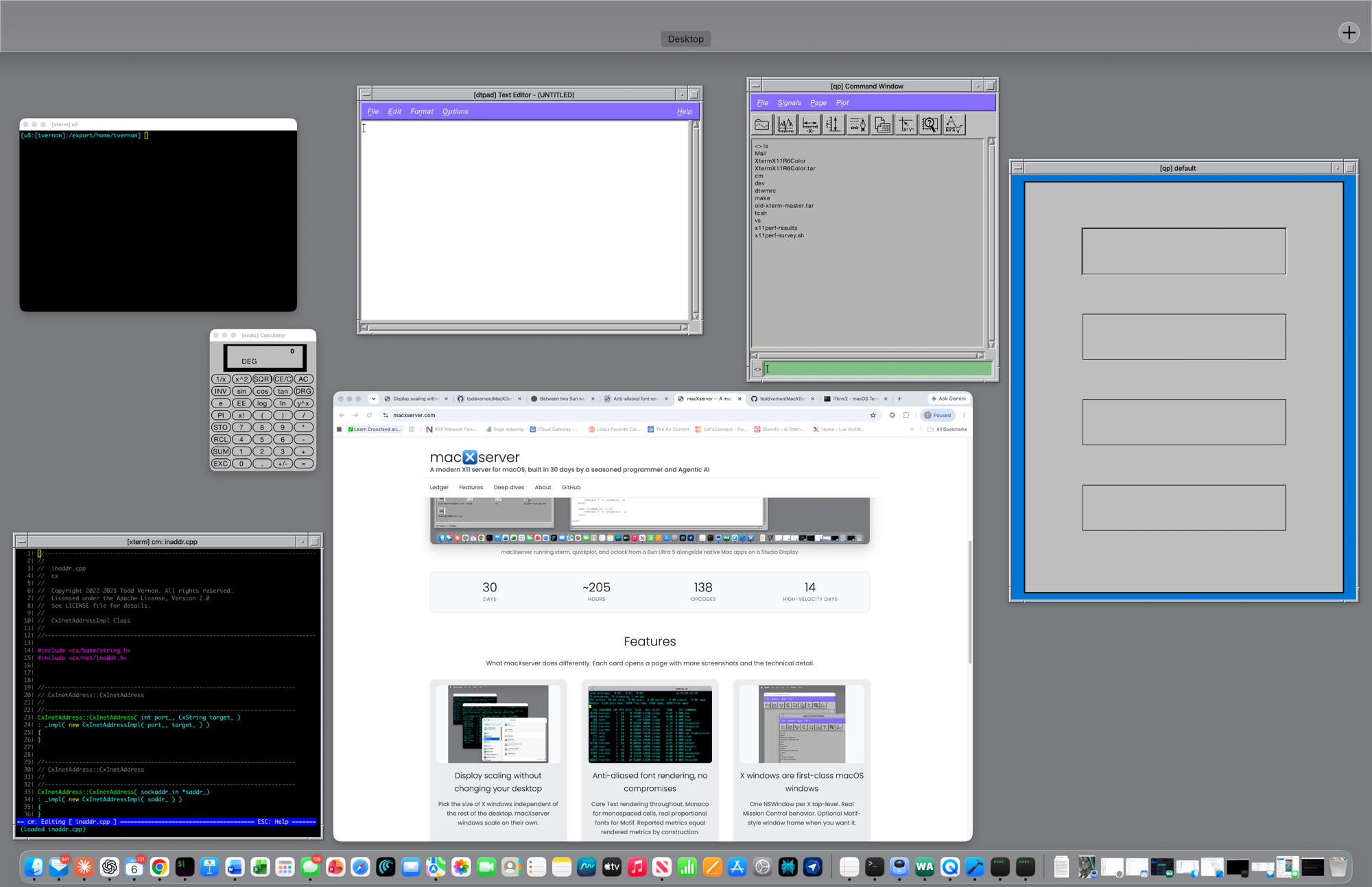

macOS Mission Control showing six X11 client windows (two xterms, dtpad, xcalc, and two quickplot windows) as individual tiles in the same grid as a Chrome browser window displaying macxserver.com.
F3 with macXserver running clients from a Sun Ultra 5. The two xterms, dtpad, xcalc, and the quickplot Command and plot windows each get their own Mission Control tile alongside Chrome. No grouping under a single macXserver tile; the X windows participate as peers with the native Mac windows.

Optionally, you can opt into a Motif-style window frame (mwm clone) per-window or globally in Preferences. Useful when you want the title bar and borders to match what the X client was originally designed to live inside.

The design choice in macXserver is that AppKit owns the window: it has the real NSWindow, the real NSView, the real first-responder chain. The X server’s job is to render into those views and translate AppKit events back to X events on the way down. The benefit is that every Mac window-management feature works because the windows are Mac windows — Mission Control, Spaces, Cmd-Tab, Stage Manager, window-snapping utilities. There’s no separate window abstraction to keep in sync with AppKit’s.

This is a different starting point from the more traditional rootless approach, where the X server maintains its own window hierarchy and renders into a translation layer above AppKit. Both designs work; the AppKit-first design is the one I wanted to try.

Technical detail

The bridge between X protocol and AppKit:

  • Each X top-level creates a MacXTopLevelWindow (an NSWindow subclass) with a FlippedXView content view. X uses y-down coordinates; the view’s isFlipped returns true.
  • Top-level window state goes through WindowBridge (the abstract surface) and CocoaWindowBridge (the AppKit implementation). The bridge handles things like ICCCM 4.1.5 synthetic ConfigureNotify on every move so the toolkit’s coordinate cache stays correct.
  • For ICCCM-compliant clients that want a window-manager-drawn title bar and borders, an opt-in MotifFrameView wraps the X client in a Motif-style frame with the standard mwm decorations. Configurable via the [motif-frame] section in ~/.macxserver-resources.

Descendant X windows (everything below the top-level — widgets, menus, dialogs) live entirely inside the top-level’s NSView as virtual surfaces with their own clipList. They aren’t AppKit views; they’re managed by the server’s ClipListEngine so we have spec-faithful X clipping semantics independent of AppKit’s view hierarchy.

  • Day 16 was the ICCCM 4.1.5 synthetic ConfigureNotify fix that unblocked Motif menu clicks.
  • Optional Motif frame shipped on Day 20 .
  • Motif frame appearance configurable from ~/.macxserver-resources since Day 23 .
