A modern X11 server for macOS, built in 30 days by a seasoned programmer and Agentic AI

Remote app launcher

One click from the Mac status menu to an X client running on a vintage Sun, or a modern Linux/BSD box over SSH. Passwords in Keychain, optional verbose progress, two-stage menu grouped by host.

Remote app launcher

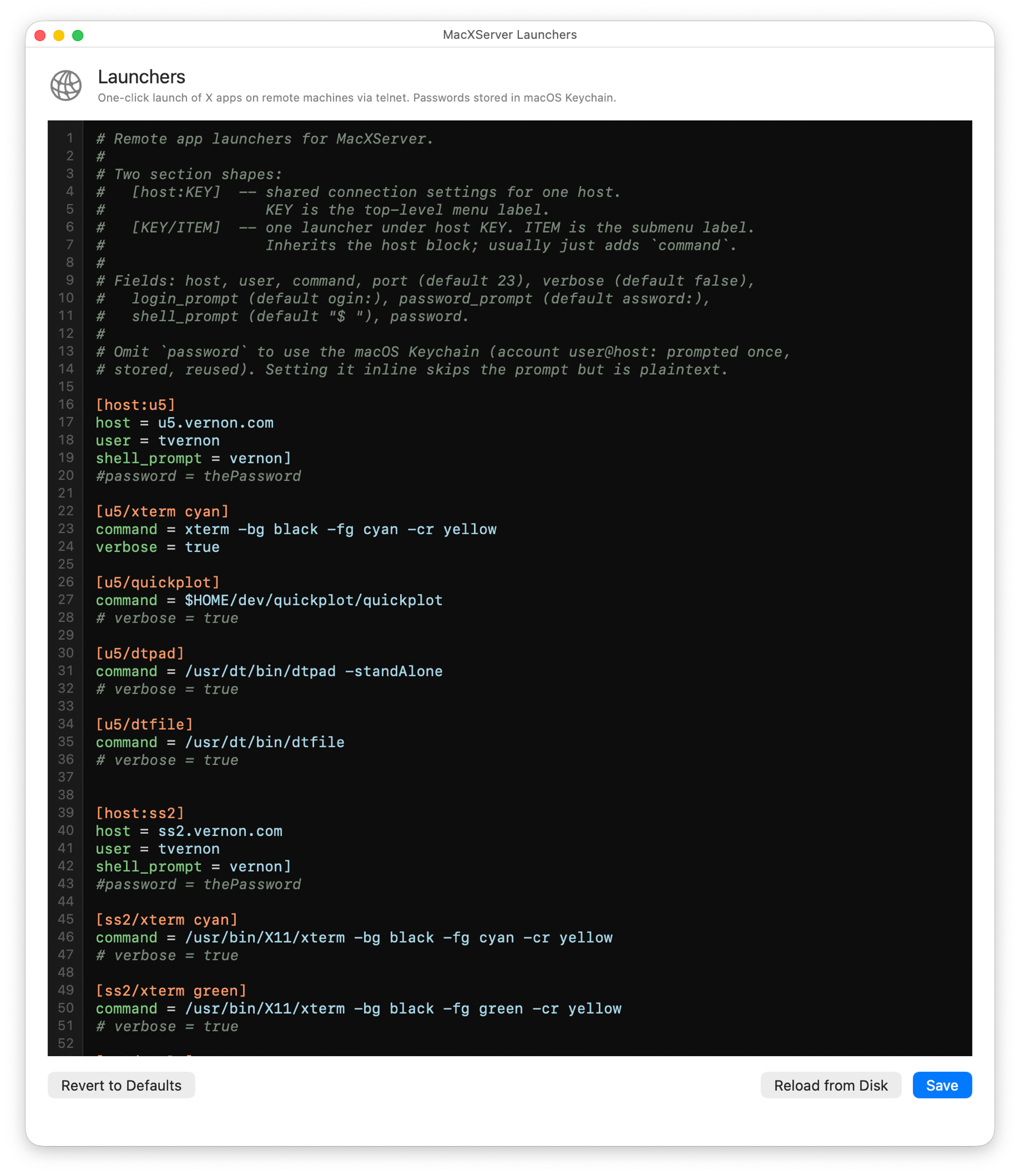

The Launchers config editor. A host block sets host and user once; each app block under it adds the command for one X app. Passwords come from the macOS Keychain, or set inline in the file.

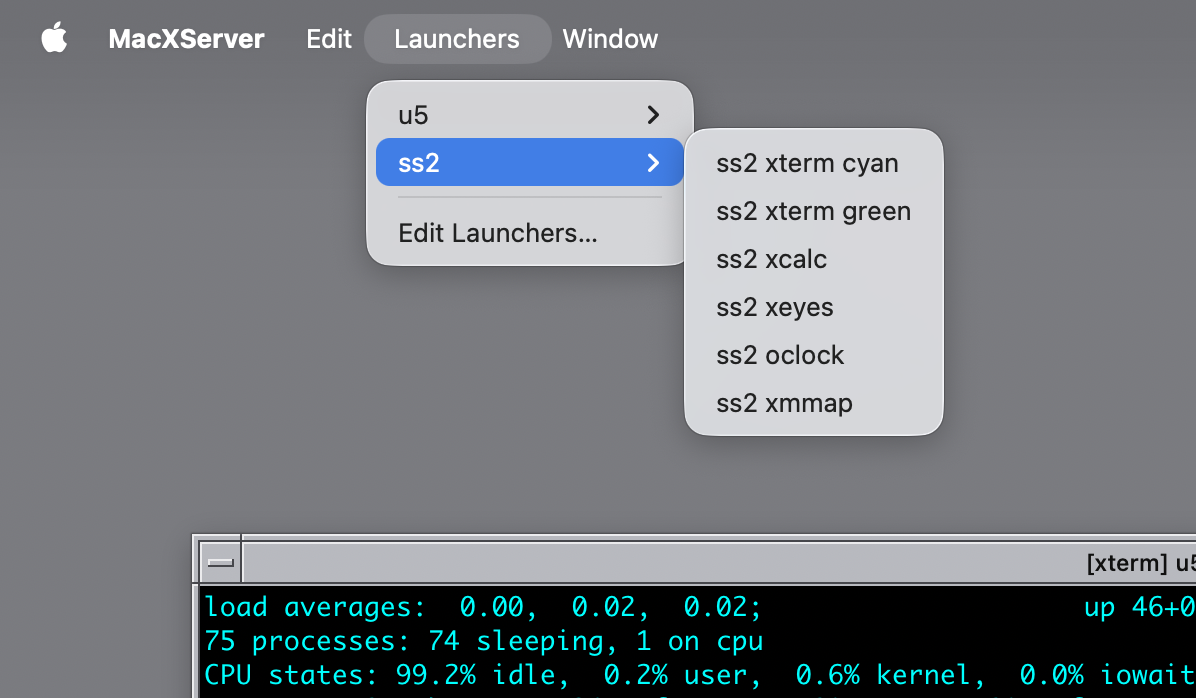

The macXserver status menu showing the Launchers submenu pulled down, with one X app per row grouped by host.
Click the macXserver status menu, pick a host, pick an X app. The submenu is built from the entries in your launcher config (above).

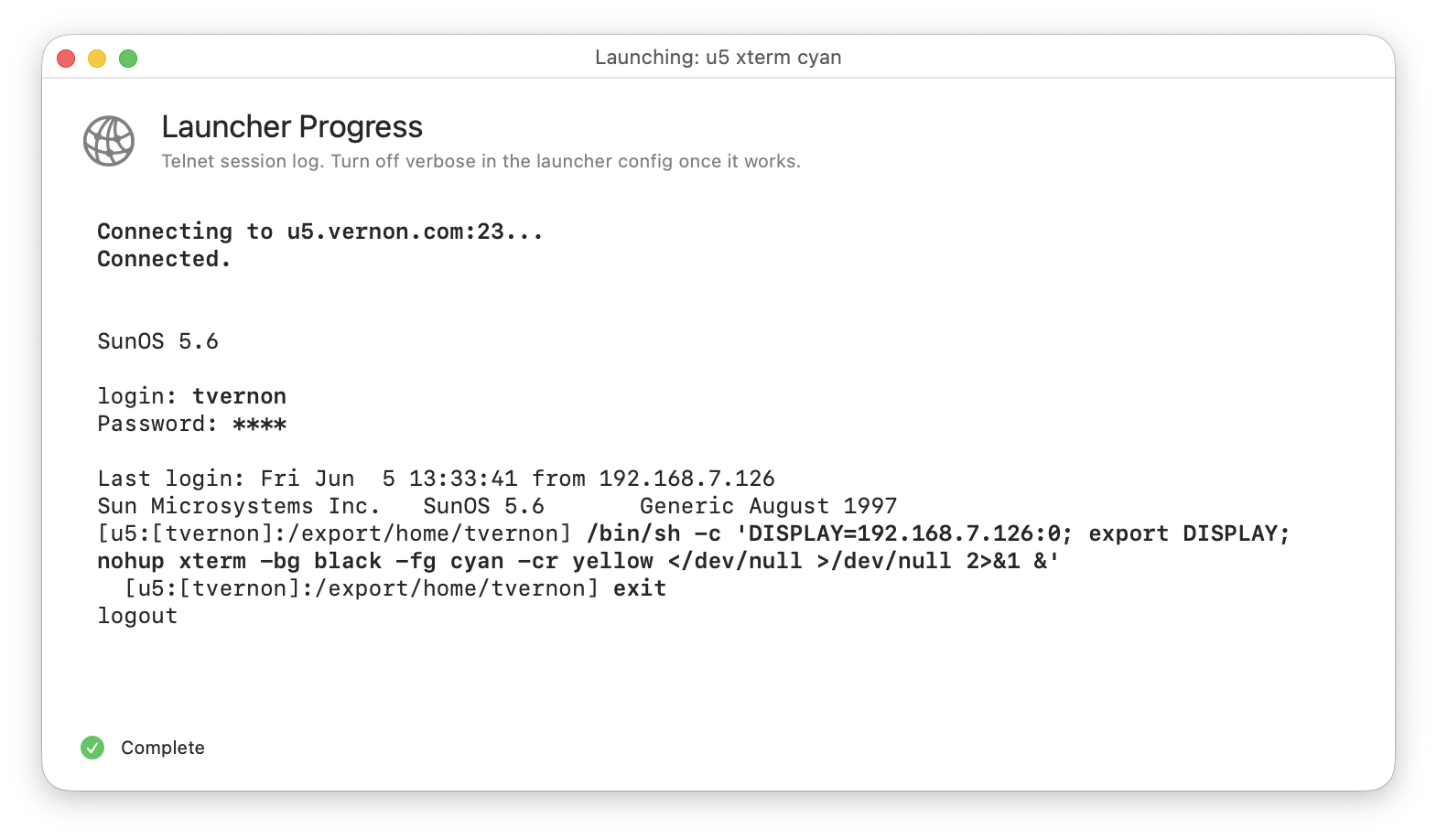

The Launcher Progress window showing a verbose telnet session log.
The Launcher Progress window with verbose mode on, showing the full telnet transcript: connection, login, the DISPLAY export, and the xterm launch command. Useful while you're getting a new launcher entry working; once it runs cleanly, set verbose = false and the window stays hidden.

What it does

A two-stage menu in the macXserver status bar, grouped by host. Pick a remote machine; pick an X app. macXserver connects in, sets DISPLAY to your Mac’s IP, and launches the app. The window appears on your Mac.

No more remembering the right host, the right DISPLAY syntax, the right shell to use, the right path to the binary. Passwords live in the Mac Keychain. An optional verbose progress window shows you exactly what’s being sent over the wire if you want to see it.

Two transports. Set transport = telnet (the default) for vintage boxes that don’t run sshd — SunOS 4.1.4 and older Solaris are the cases this was built for. Set transport = ssh for modern Linux, BSD, or Solaris hosts. Password auth isn’t supported on the SSH path. Keys only. Run ssh-copy-id user@host once from your Mac to install the key; the launcher then uses it automatically via BatchMode=yes. Either transport sets DISPLAY directly on the remote and lets the X client open a plain TCP connection back to macXserver; we do not tunnel X traffic through ssh -X. That means the remote sshd doesn’t need X11Forwarding yes, and the X11 path is the same regardless of transport, so anything that renders right over telnet renders right over ssh.

When the X server is on your Mac and the X clients you actually want to run live on a Sun in the basement, the daily friction is the telnet-into-the-Sun part. That’s three steps every time: ssh-or-telnet, set DISPLAY correctly, run the binary. Multiplied across eight workstations and dozens of apps, it adds up. The launcher removes that friction.

The vintage Suns also have constraints: SunOS 4.1.4 doesn’t know about xterm-256color, the default shell prompts assume TERM=vt100, and the path to the binary depends on which release you’ve got mounted. The launcher negotiates TERM=xterm on the telnet connection so the remote shell’s prompt setup runs cleanly, and the per-host launcher configuration lets you encode the right path per Sun.

Technical detail

Launcher entries live in ~/.macxserver-launchers as a structured config file. A [host:NAME] block holds the connection settings for one machine, and each app is its own [NAME/label] block that inherits those settings and adds a command:

[host:ultra5]
host = ultra5.local
user = todd

[ultra5/xterm]
command = /usr/openwin/bin/xterm -bg black -fg white

[ultra5/xcalc]
command = /usr/openwin/bin/xcalc

[ultra5/quickplot]
command = /usr/local/quickplot/bin/quickplot

[host:ss2]
host = ss2.local
user = todd

[ss2/xterm]
command = /usr/bin/X11/xterm

[host:nuc]
host = nuc.local
user = todd
transport = ssh

[nuc/xterm]
command = xterm -fn 10x20 -bg black -fg green

[nuc/firefox]
command = firefox

The text after the / becomes the submenu label. Connection fields (host, user, transport, port, shell_prompt, login_prompt, password_prompt, verbose) go once in the [host:NAME] block, so each app block usually needs only its command. transport defaults to telnet; set it to ssh for modern hosts.

Passwords on telnet entries aren’t a config key you point at the Keychain. Omit password and the launcher prompts you once, then stores it in the macOS Keychain under the account user@host and reuses it on later launches. You can set password inline in the host block instead, but it’s plaintext, so skip that on a shared machine. SSH entries skip the password flow entirely — they require key-based auth and never prompt for or store a password.

Under the hood, the telnet path runs an interactive expect-style script: wait for the login prompt, send the user, wait for the password prompt, send the password, wait for the shell prompt, send TERM=xterm, send export DISPLAY=..., then send the binary launch. The SSH path is simpler — it spawns /usr/bin/ssh with BatchMode=yes and StrictHostKeyChecking= accept-new and lets ssh handle the protocol; the wrapped remote command runs through /bin/sh -c so the syntax is Bourne even if the remote user’s login shell is csh or tcsh. Either way the optional progress window streams every line of the transcript so you can debug a misbehaving remote shell.

  • The launcher shipped Day 23 .
  • Two-stage menu grouping by host shipped Day 26 .
  • TERM=xterm negotiation shipped Day 24 .
  • Plaintext password field plus Keychain fallback shipped Day 25 .
